How to use the Android MCP SMS Server in Msty Claw

This guide explains how to connect the Ozeki Android SMS Gateway MCP server to Msty Claw, enabling the AI assistant to send messages directly from your Android phone. By following this tutorial, you will learn how to install the Ozeki Android SMS Gateway app, enable its built-in MCP server, register the MCP endpoint in Msty Claw, and verify that everything is working by sending a test message.

Solution: How to send SMS from Msty Claw

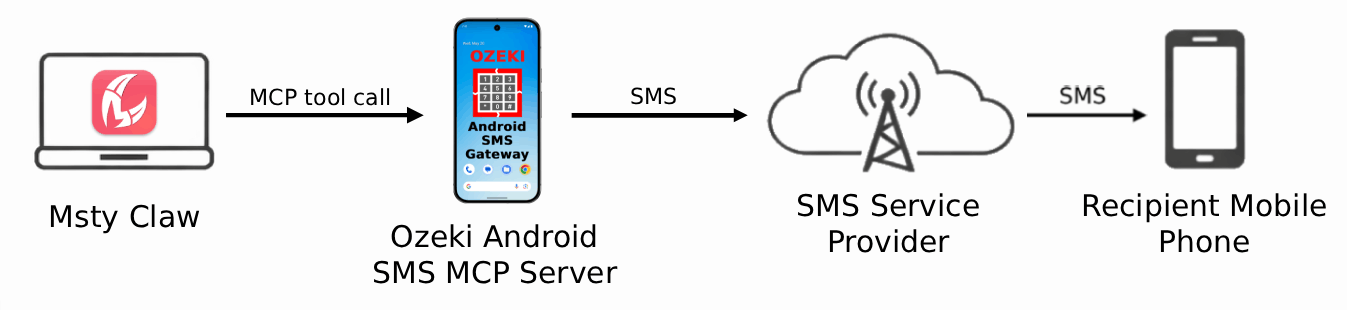

Msty Claw is connected to the Ozeki Android SMS MCP Server through the MCP protocol, where Msty Claw is the MCP client and the Android phone is the MCP server. The Android phone is connected to the SMS service provider through a wireless mobile network connection. When an SMS is sent, it first travels from Msty Claw to the Android phone through the MCP protocol, and the Android phone forwards it to the SMS service provider, which delivers it to the recipient's mobile phone.

What is Msty Claw?

Msty Claw is an AI chat application that allows you to interact with local and cloud-based large language models through a clean desktop interface. It supports MCP tool servers, enabling it to be extended with external capabilities such as SMS messaging, database access, and more.

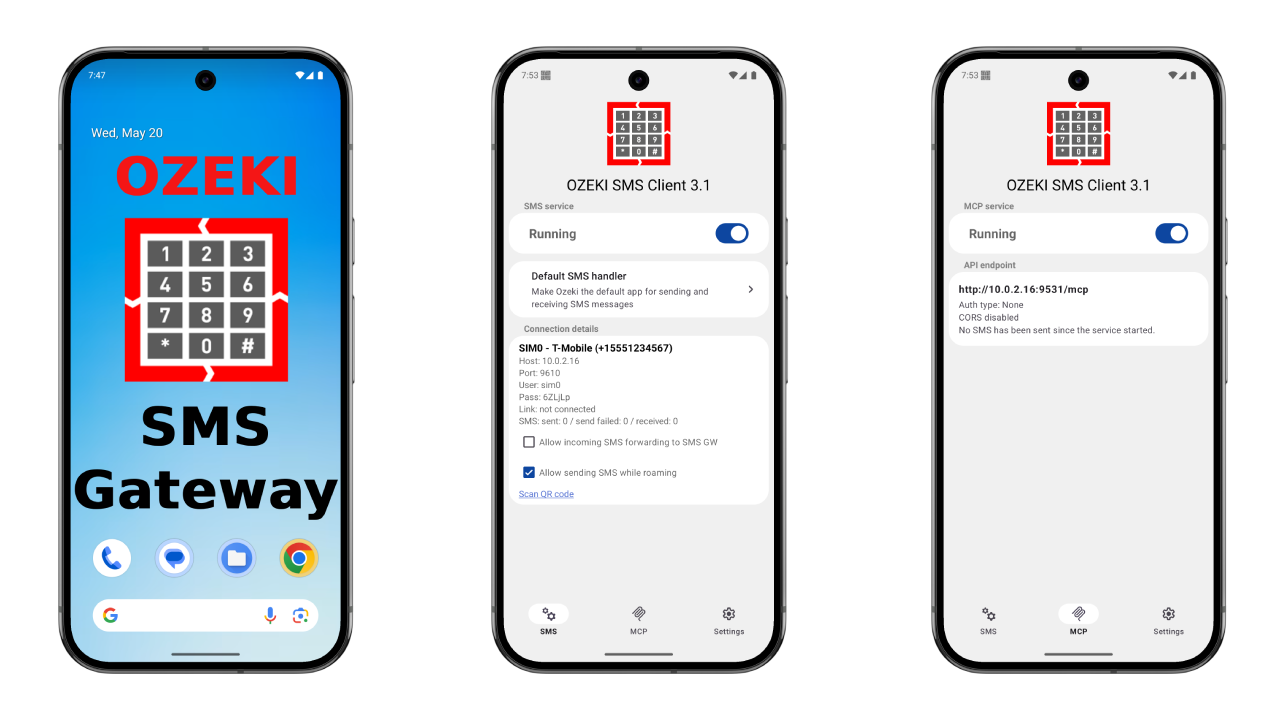

What is an Android SMS MCP Server?

An Android SMS MCP Server is a Model Context Protocol server that runs directly on an Android smartphone and exposes SMS functionality — such as sending text messages and querying SIM subscriptions — as structured tools that any MCP-compatible AI client can call. Once installed and configured, the AI client can send real SMS messages through the phone's SIM card to any phone number, with a single tool call.

Download Ozeki Android SMS Gateway

To use this solution you need to install the Android app on your Android phone.

Download the android app: Android SMS Gateway

https://android-sms-gateway.com/p_51-download-android-sms-gateway.html

Steps to follow

You will need Msty Claw installed on your system. If you have not set it up yet, follow our Msty Claw installation guide.

Install Ozeki Android SMS Gateway
Enable MCP SMS Server
Msty Claw SMS MCP Server Config
Add the SMS MCP Server config to Msty Claw
Send a test SMS
Check the SMS in the SMS Gateway logs

Step 1 - Install Ozeki Android SMS Gateway

For a full tutorial on installing the Ozeki Android SMS Gateway, check out our How to install Android SMS Client and Enable Ozeki SMS Client permissions guides.

Before you can use the MCP SMS Server, you need to install the Ozeki SMS Client on your Android device. The app will serve as the local SMS gateway that Msty Claw connects to over your Wi-Fi network. Make sure both devices are on the same local network, as this is required for the HTTP connection to work.

Step 2 - Enable MCP SMS Server

For a full tutorial on enabling the MCP server in the Android app, check out our Android MCP SMS Server configuration guide.

Open the Ozeki SMS Client app on your Android device and tap the MCP tab in the bottom navigation bar. Tap the toggle switch to start the MCP server and approve any permission requests that appear, including access to SMS messages. The toggle will switch from "Stopped" to "Running" and the API endpoint URL will appear below. Copy this URL, as you will need it when configuring Msty Claw in the next step.

Step 3 - Msty Claw SMS MCP Server Config

# Settings -> Tool Servers -> Add Server
# Replace {address} with your Ozeki Android SMS Gateway address
Name: Ozeki Android SMS MCP
Transport: Remote URL
URL: http://{address}:9531/mcp

Example prompt

Send an SMS to +36301234567, the message should be "Hello from Msty Claw".

Step 4 - Add the SMS MCP Server config to Msty Claw

The following video shows how to add the Android SMS MCP server to Msty Claw step-by-step. It covers opening the settings, registering the MCP tool server, and connecting to the Android gateway.

Open Msty Claw and navigate to the Settings menu by clicking the settings icon in the interface. This is where tool server integrations and other application-level configurations are managed (Figure 1).

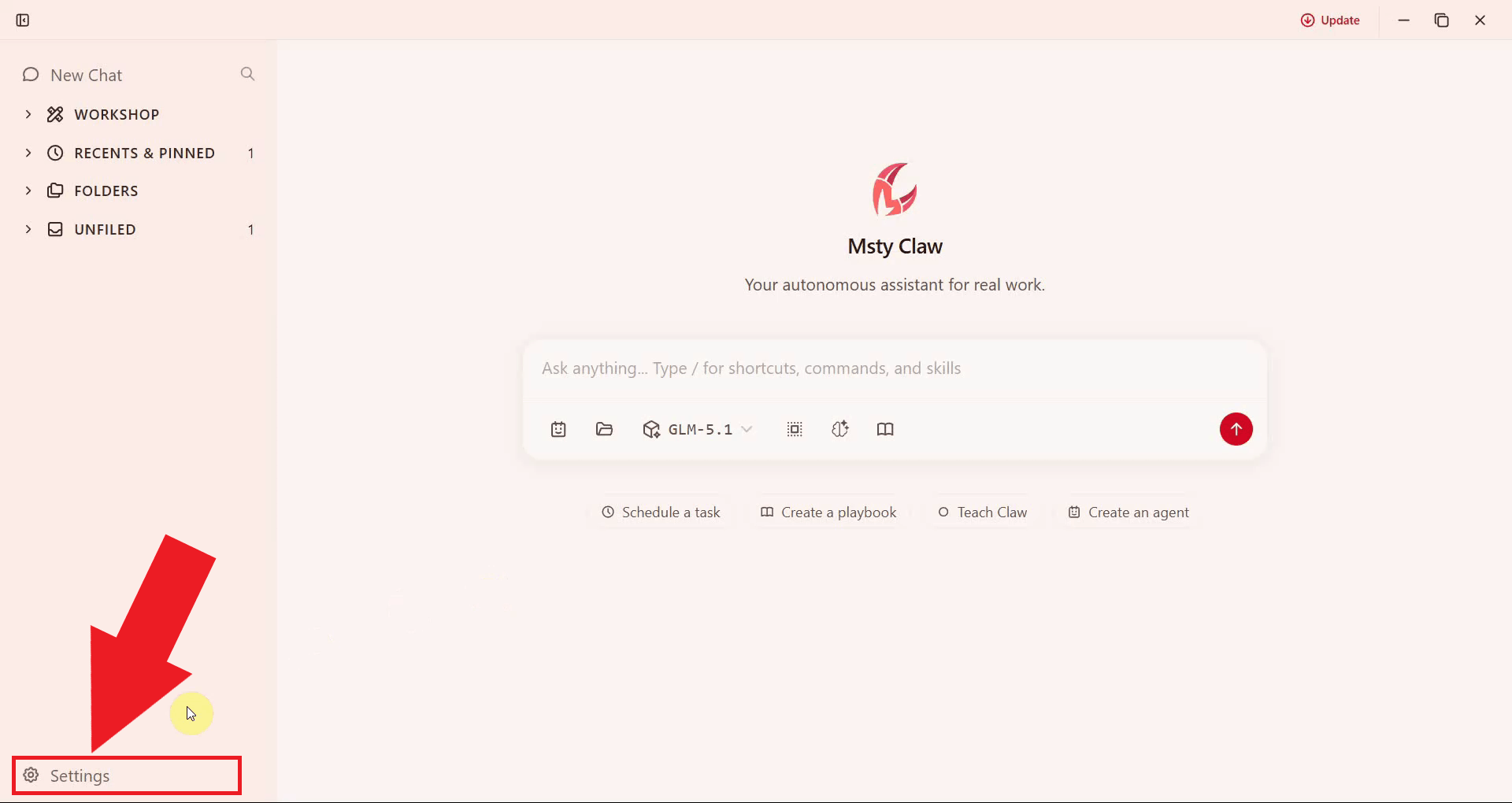

Open settings menu — Figure 1 - Open the Msty Claw settings menu

Navigate to the Tools section, where external tool server integrations can be managed. This is the entry point for adding the Ozeki SMS MCP Server as a new tool server that Msty Claw will use for SMS capabilities (Figure 2).

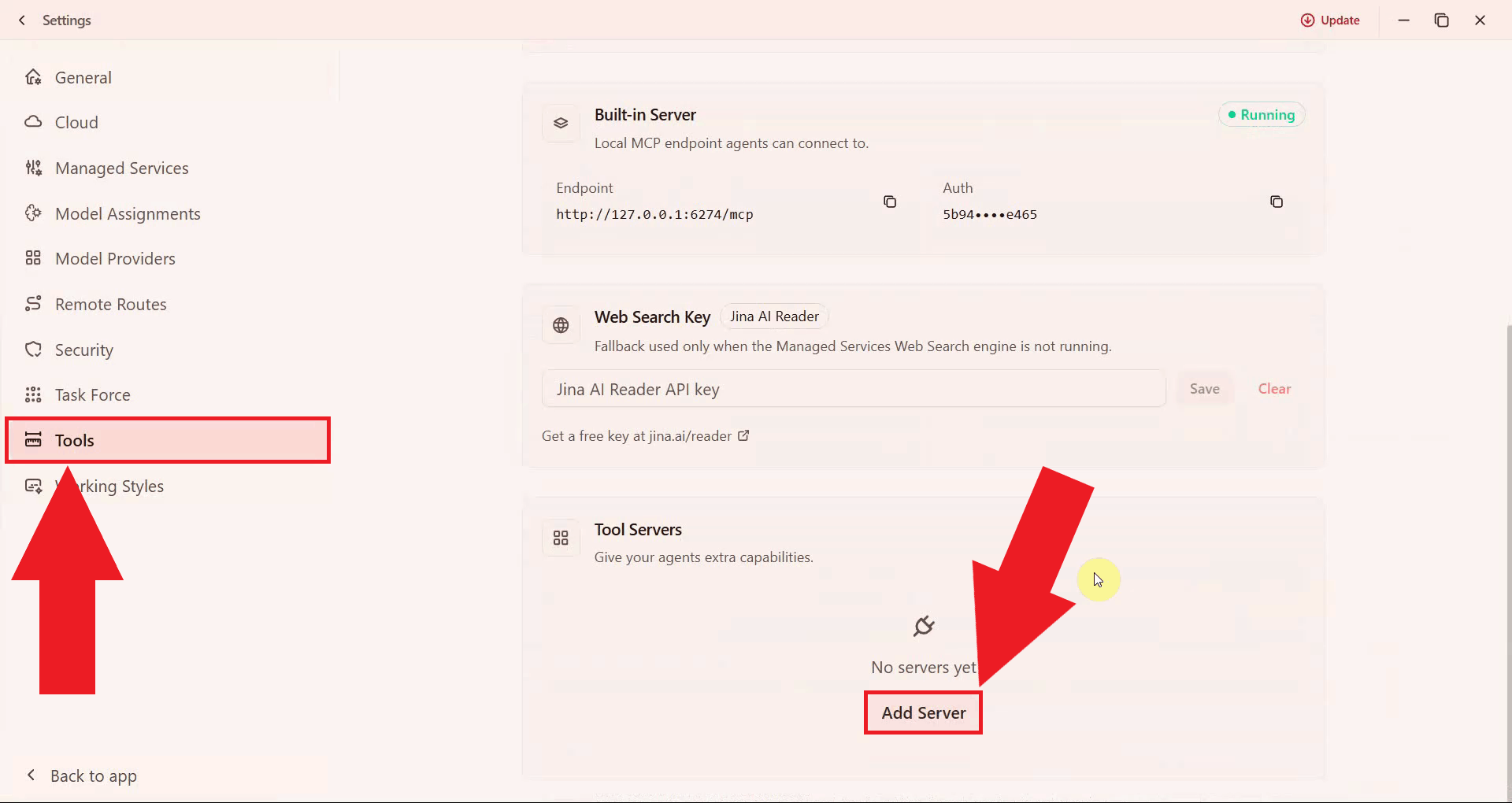

Add tool server — Figure 2 - Click Add Tool Server in the Tool Servers section

Fill in the MCP server details in the registration form. Enter a descriptive Name, set the Transport to Remote URL and enter the URL endpoint shown in the Ozeki SMS Client app on your Android device. Replace {address} with the IP address of your Android device (Figure 3).

Name: Ozeki Android SMS MCP
Transport: Remote URL
URL: http://{address}:9531/mcp

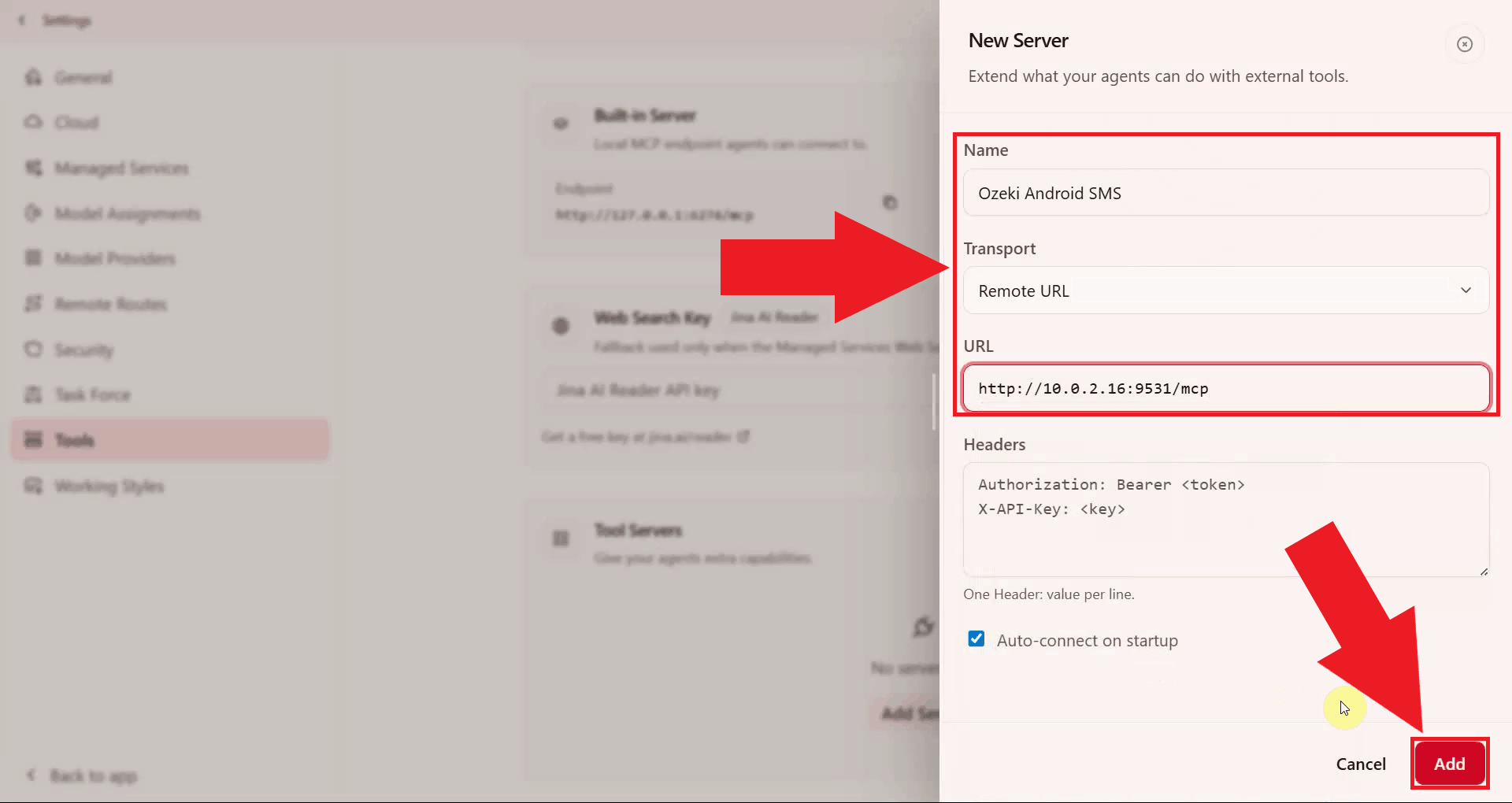

Configure Ozeki Android SMS MCP server — Figure 3 - Configure the Ozeki Android SMS MCP server details

Click the Connect button to establish the connection to the Android gateway. Once the connection is established, the server becomes active and its tools become available in Msty Claw (Figure 4).

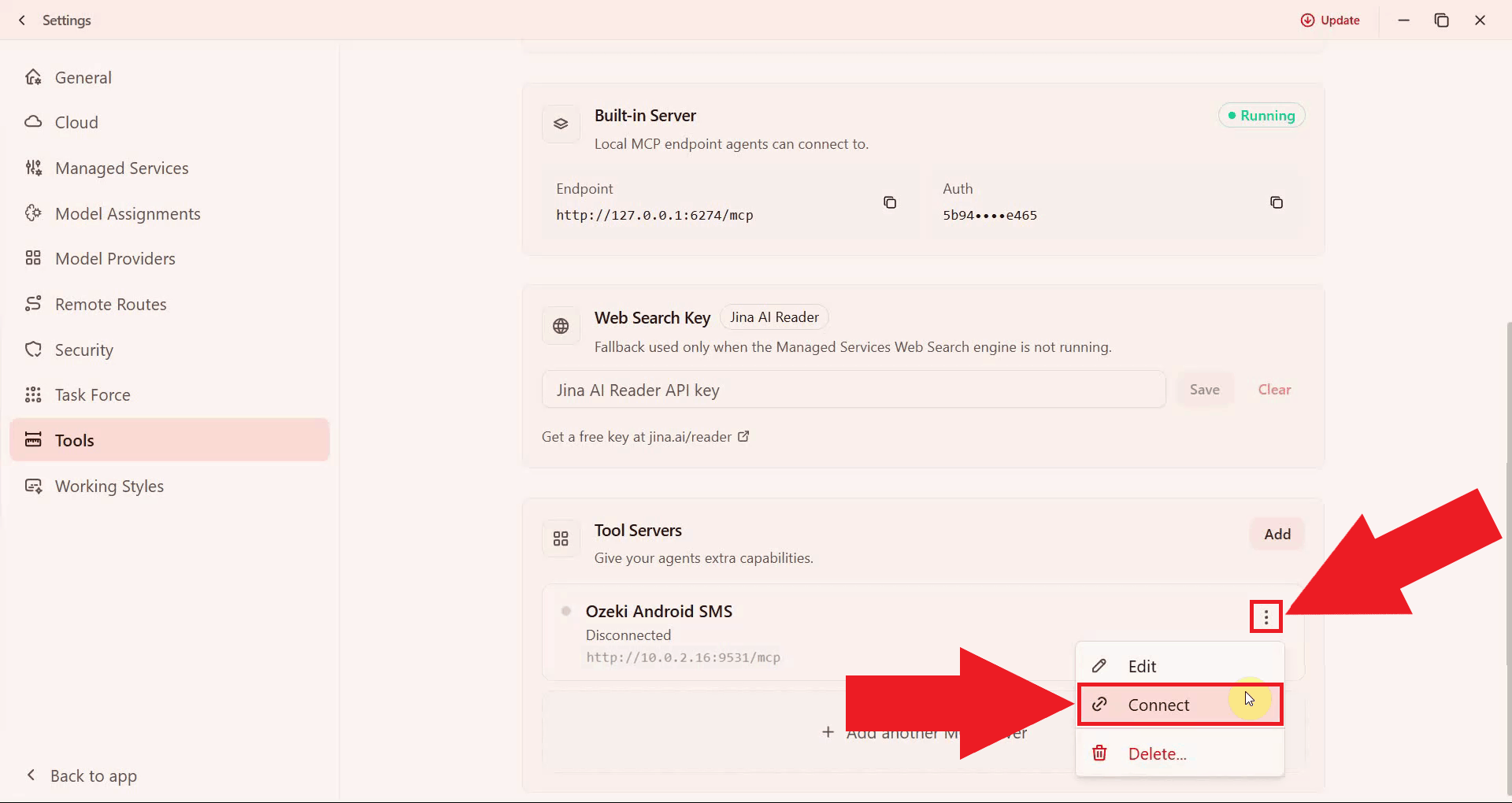

Connect to MCP server — Figure 4 - Connect to the Ozeki Android SMS MCP server

Step 5 - Send a test SMS

The following video shows how to send an SMS message from Msty Claw using the Ozeki Android SMS MCP server step-by-step.

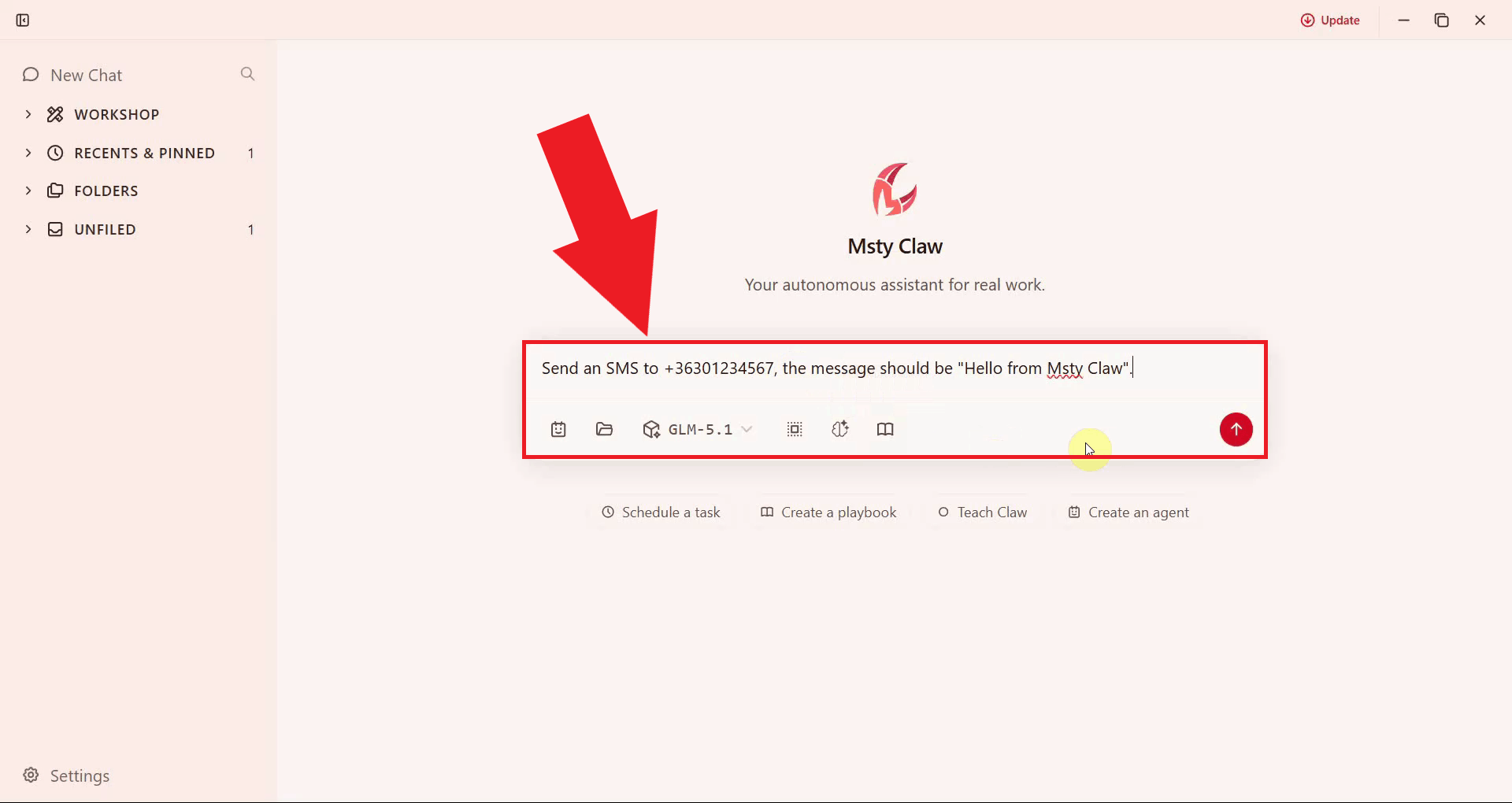

Start a new chat in Msty Claw and type a plain language instruction asking the AI to send an SMS to a specific phone number. Msty Claw will call the Send SMS tool and process the request (Figure 5).

Send an SMS to +36301234567, the message should be "Hello from Msty Claw".

Instruct AI to send an SMS — Figure 5 - Instruct the AI to send an SMS message

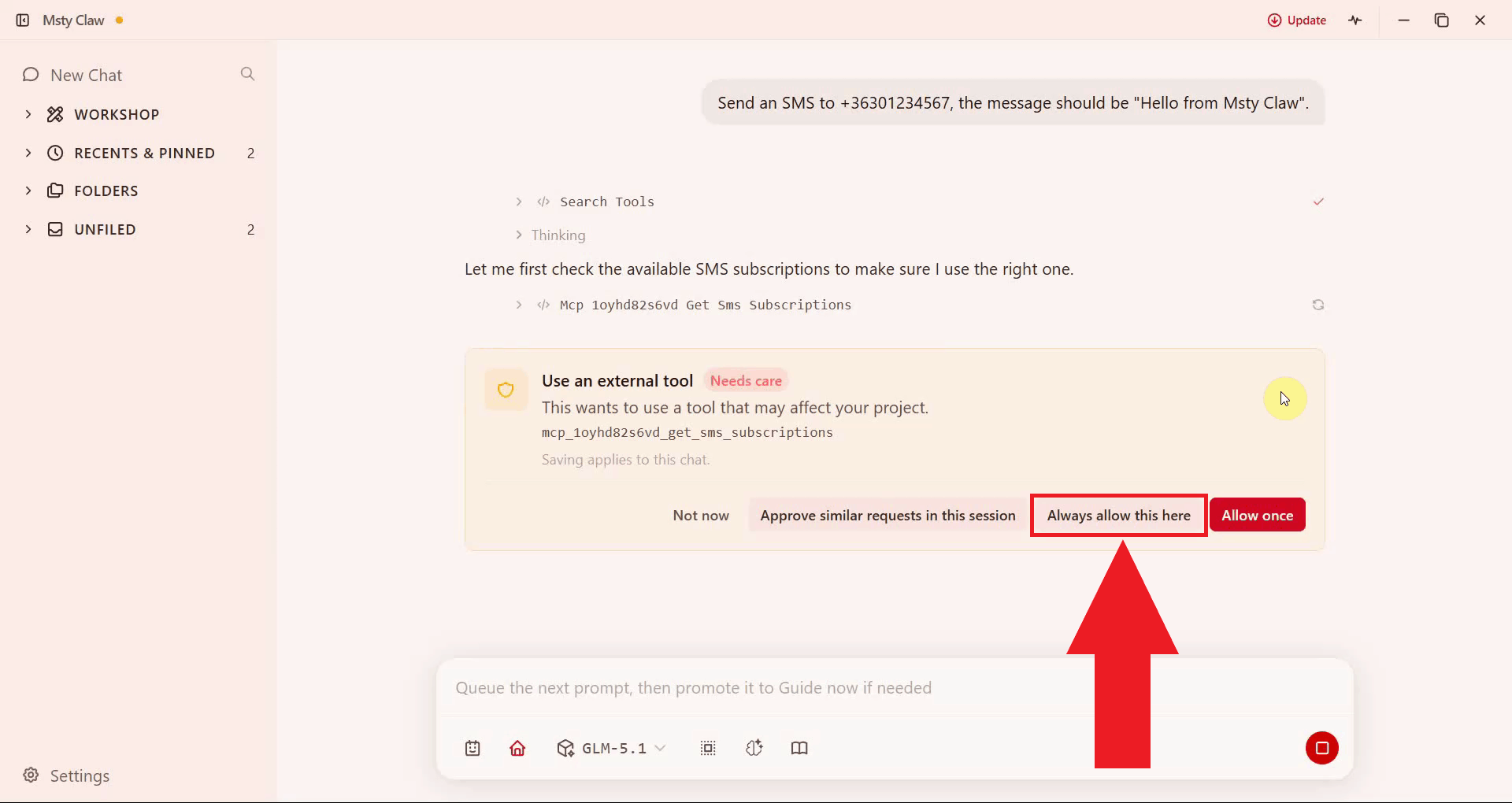

You may be prompted to approve the tool use before proceeding. This is a security confirmation to ensure you are aware that an external tool is being called on your behalf. Confirm the action to allow the AI to send the SMS (Figure 6).

Approve tool use if prompted — Figure 6 - Approve the tool use if prompted

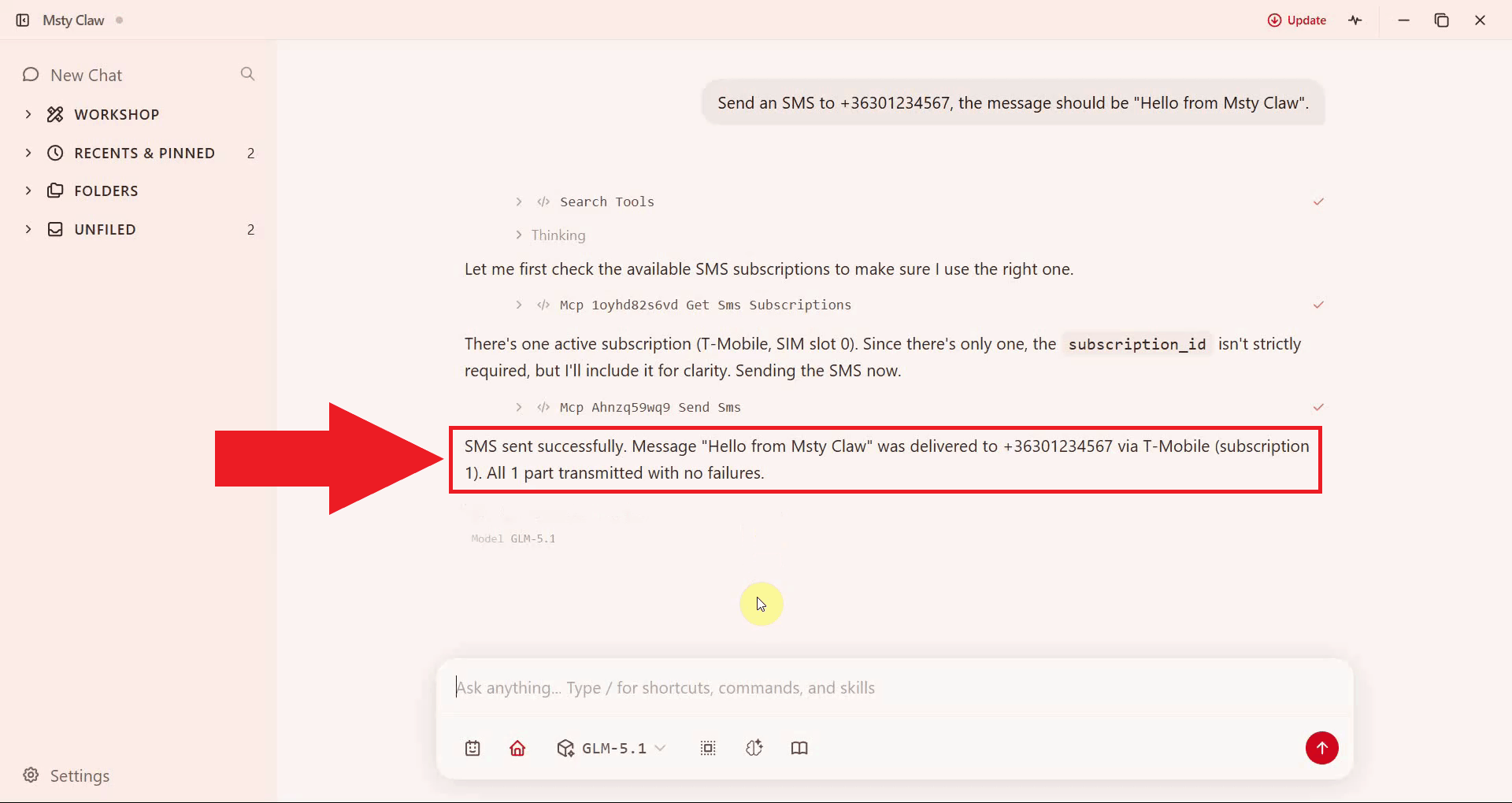

You will see the result of the Send SMS tool call in the chat window. A successful response confirms that the message has been passed to the Android gateway and queued for delivery (Figure 7).

Step 6 - Check the SMS in the SMS Gateway logs

The following video shows how to check the gateway logs in the Ozeki SMS Client app step-by-step. This allows you to confirm that the SMS request from Msty Claw was received and processed successfully by the Android gateway.

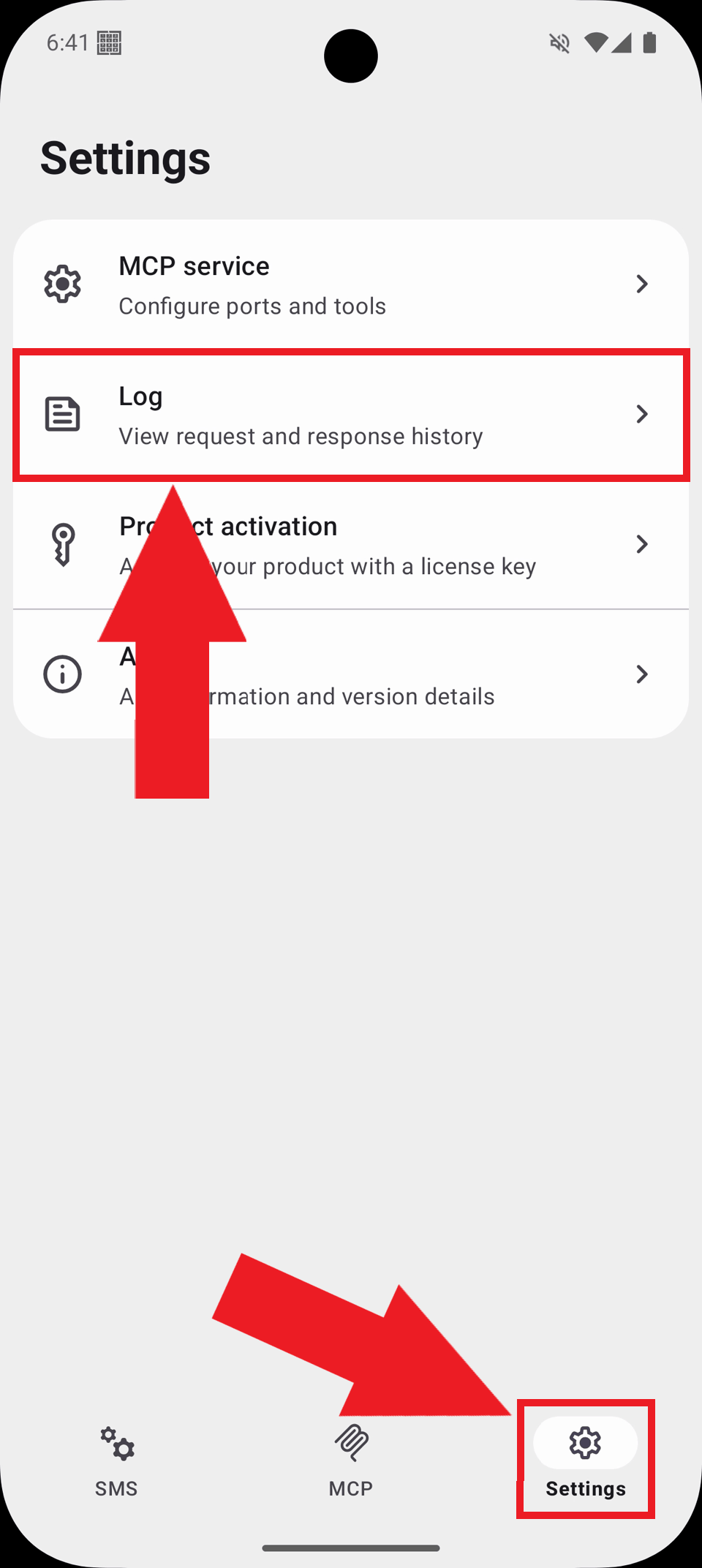

Open the Ozeki SMS Client app on your Android device and navigate to the Settings tab in the bottom navigation bar to access the application settings. Tap the Log option to view the request and response history (Figure 8).

Figure 8 - Open the logs in the gateway settings

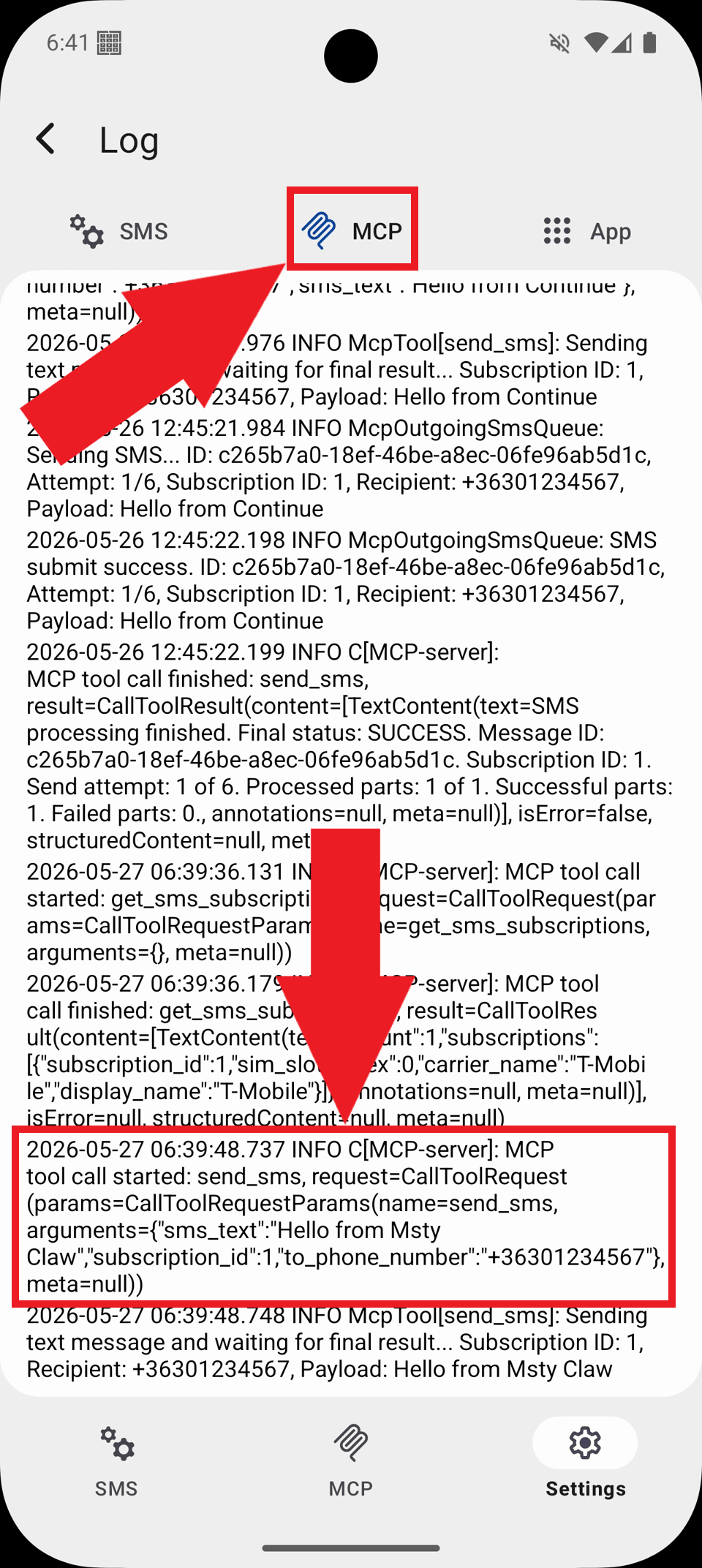

Select the MCP tab to show only MCP-related activity. Here you will see the incoming tool call requests from Msty Claw and the responses sent back, allowing you to confirm that the SMS was dispatched successfully (Figure 9).

Figure 9 - Select the MCP tab to view the MCP activity logs

Summary

You have successfully configured the Ozeki Android SMS Gateway MCP server with Msty Claw. Your Android device is now acting as a local SMS gateway that it can communicate with over your local network, enabling text messages to be sent to any phone number using plain language prompts. All SMS traffic is routed through your Android device's mobile connection, with no cloud messaging API or third-party service required.
